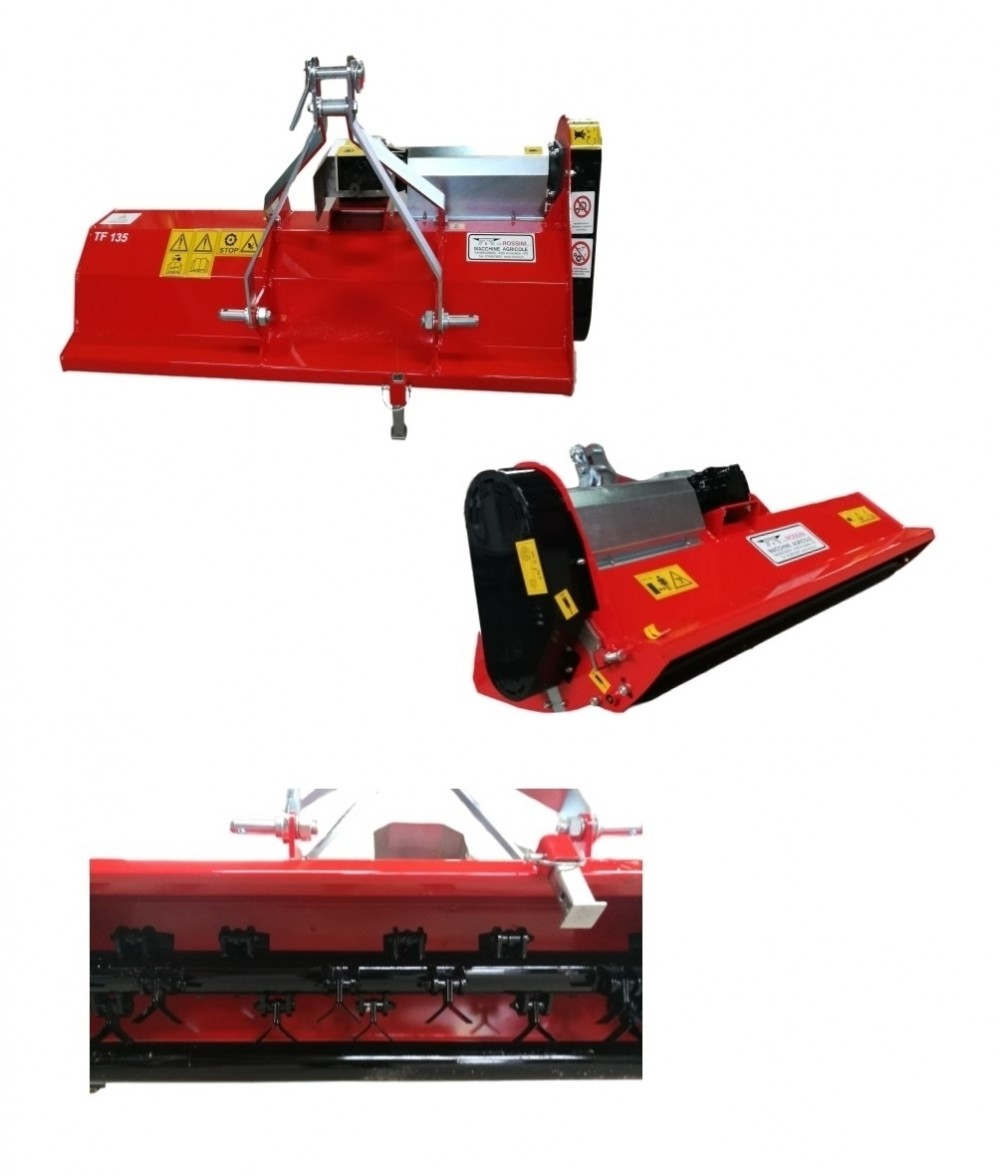

Mulchers Model TF

Mulchers Model TF - F.lli Rossini & c  s.n.c.

The our mower model TF is typically used for grass and fine pruning.

The light weight, the flexibility and the strong frame are the main characteristics.

Standard Equipment:

  1. Aluminum gearbox 540RPM with free wheel -
  2. Three point hitch -
  3. Universal Joint -
  4. Two belt transmission with adjustable tensioner
  5. Rotor with spatulas and knives - Rear roller (3 positions).



Mod

Hp

Cv

WORKING WIDTH

cm

WEIGHT

 Kg

BLADES

SPATULA

TF 95 12/20 95 110 28 14
TF 115 16/24 115 115 32 16
TF 135 20/25 135 120 40 20
TF 155 25/30 155 127 44

22

Brochure mod. TF Brochure mod. TF [1.612 Kb]

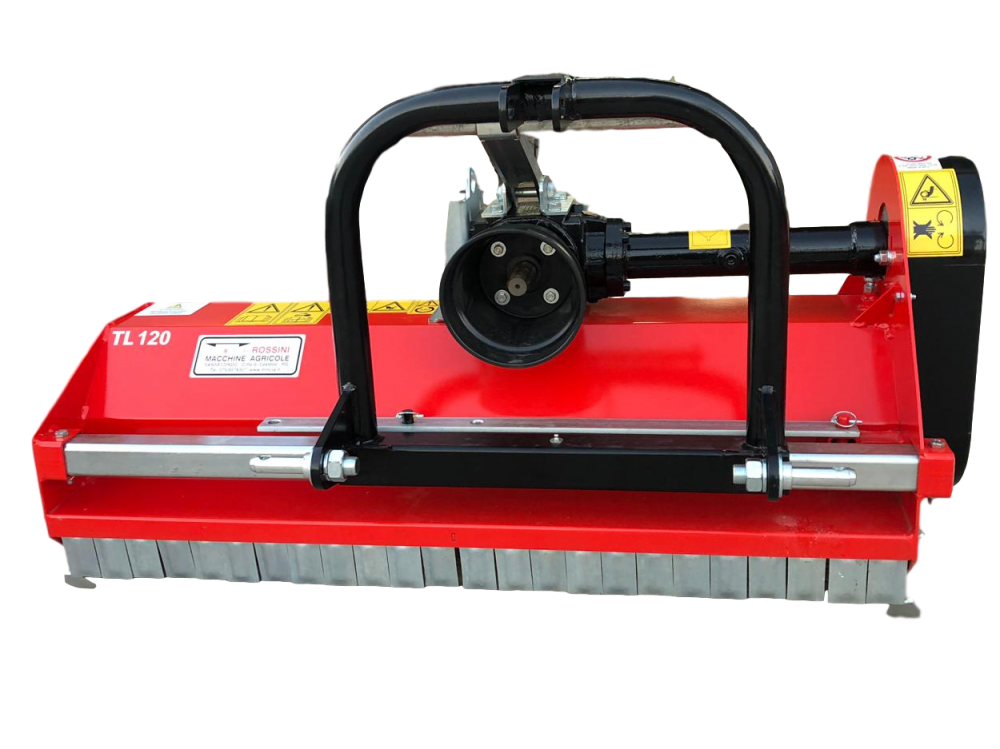

Pruning shredders model TL

Pruning shredders model TL - F.lli Rossini & c  s.n.c.

The pruning shredder model TL is a very versatile machinery that can be used to cut grass or little sarments of vines,olive and fruit trees.The machinery is available in its movable,mechanical and hydraulic versions , with a wide range oaccssories.

Standard Equipment :-

  1. Mechanical shift
  2. Blades or hammers
  3. Universal Joint
  4. Protection straps
  5. Adjustable belt thightener
  6. Freewhell cast iron gearbox with







Model

   HP

CV

working width

cm

 Max weight.

Kg

Blades.

Hammers

TL 100 16/18 100 150 24 12
TL 110  18/20 110 175 28 14
TL 120 20/25 120 185 32 16
TL 130 25/30 130 195 36 18
TL 140 25/30 140 205 36 18
TL 150 30/35 150 215 40 20
TL 160 30/35 160 225 44 22
TL 180 35/40 180 245 48 24

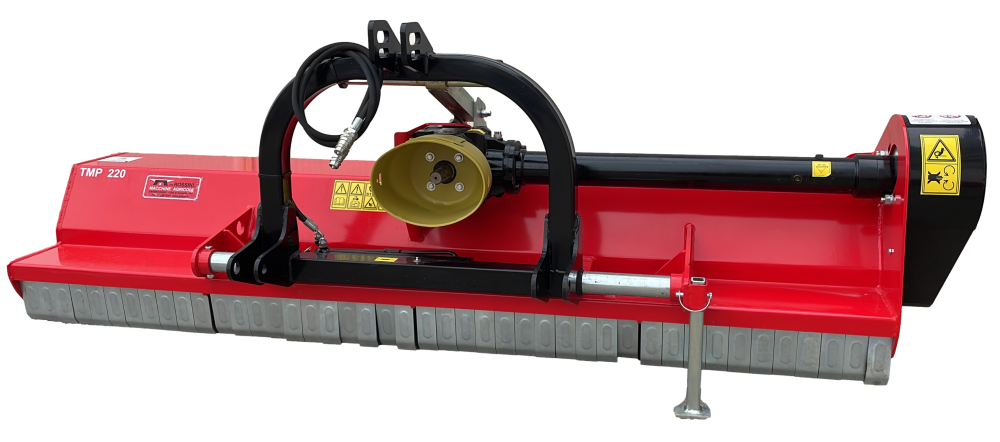

PRUNING SHREDDERS MODEL TMP

PRUNING SHREDDERS MODEL TMP - F.lli Rossini & c  s.n.c.

Pruning Shredder model TMP is ideal for mulching twigs, maize, grass, brushwood, ecc..

Its compact design, small size and narrow body make it ideal for work in orchards and between rows.

It boasts a robust steel frame and an electronically balanced rotor mounted on fully enclosed, self-aligning bearings.

The belt transmission is driven by an oil bath bevel gearbox with freewheel. The rotor can be fitted with Y blades or hammers to suit the job in hand.

Standard Equipment:-

  1. Mechanical shift-Blades or hammers
  2. Universal Joint-Protection straps
  3. Adjustable belt thi-ghtener
  4. Rear Roller (3 position)
  5. Freewhell cast iron gearbox.







 Model

TMP

HP

CV

PTO

giri / 1 min

Working width

cm

weight

Kg

blades

Hammers

TMP 130

25-30

540 130 290 20 10
TMP 140 30-35 540 140 310 24 12
TMP 150 35-40 540 150 330 24 12
TMP 160 40-45 540 160 350 28 14
TMP 180 45-50 540 180 380 28 14
TMP 200 45-55 540 200 400 32

 16

TMP 220 55-70 540 220 470 36

18

DEPLIANT TMP, DEPLIANT TMP, [636 Kb]

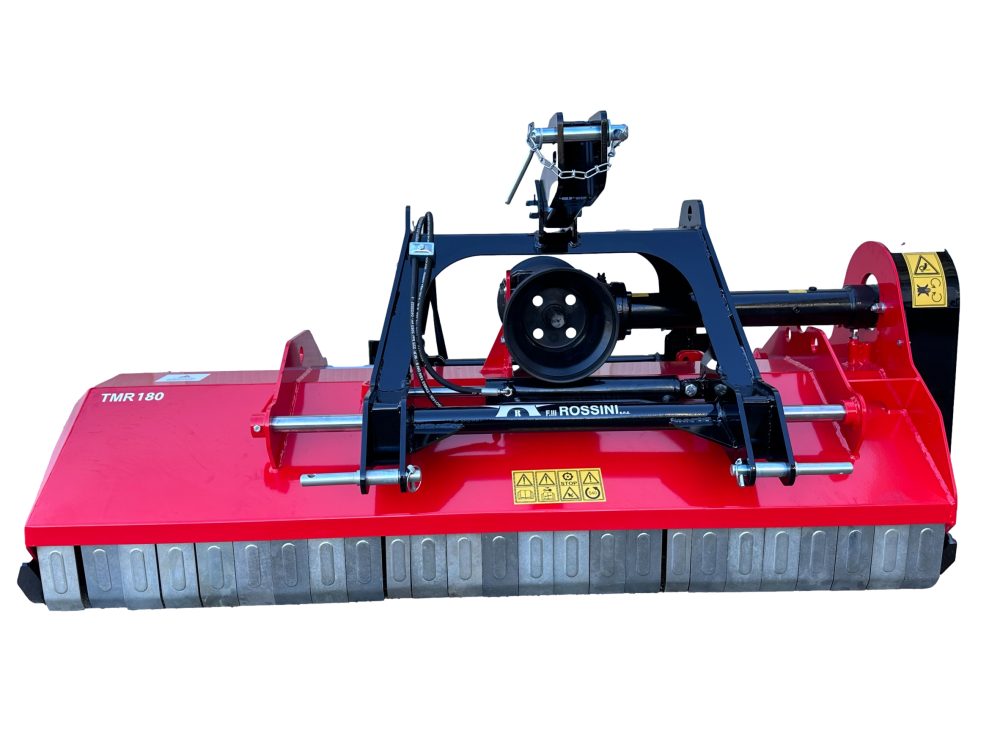

Medium-Mulcher MOD. TMR with reversible hich frame

Medium-Mulcher MOD. TMR with reversible hich frame - F.lli Rossini & c  s.n.c.

Its characteristics is extreme versatility. We give the possibility to have it in 5 different models, from 120 to 200 centime- ters of work,

it can be used with tractors from 30 to 70 CV-HP.

For the realization of this product the best materials have been used and it is equipped with different accessories to satisfy all working needs.

Pruning (from 5 to 7 cm. in diame- ter), vine shoots, olives trees, fruit trees etc.

The TMR model has as its first quality the sturdiness and reliability of all our products, it guarantees excellent performance with low energy consumption.

Standard equipment:

Reversible three-point hich frame-gearbox with freewheel and through shaft-double case rein- forced and welded frame-hammers (or Y blades)-mechanical shift-adjustable side skids-adjustable rear roller diam.140 mm-hitch (cat) I° and II°-protecting front flaps CE covers.







MODEL

TMR

HP

CV

WORKING WIDTH

CM

WEIGHT

KG

BLADES

HAMMERS

TMR 120 30/40 120 370 20 10
TMR 140 35/40 140 410 24 12
TMR 160 45/60 160 450 28 14
TMR 180 45/60 180 490 28 14
TMR 200 60/70 200 530 32 16







DEPLIANT TMR, DEPLIANT TMR, [926 Kb]

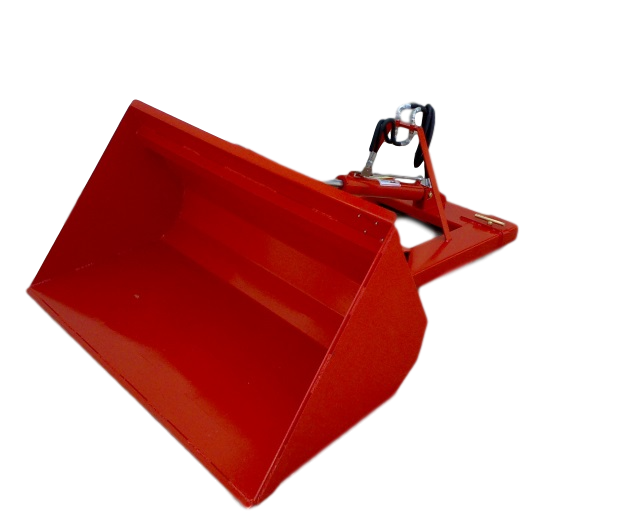

Loader model PC

Loader model PC - F.lli Rossini & c  s.n.c.

Loader model PC applicable to forklift truck's forks.

Recommended for material handling as loose products, sand, gravel, snow (mod. PC)

and for material handling of foodstuff in version with stainless steel spoonbucket (mod. PC)



Model

PC

LOADER WIDTH

CM

LOADER CAPACITY

LT

LOADER WEIGHT

KG

MAXIMUN CAPACITY

KG

TOTAL WEIGHT

KG

XG POSITION OF THE CENTER OF GRAVITY TOTAL

MT

              PC 120                             120 320 200 770 970 1,31
PC 150 150 400 215 960 1175 1,32
PC 180 180 480 230 1150 1380 1,33



DEPLIANT PC, DEPLIANT PC, [1.246 Kb]
